Plam Oil Processing Plant and Machinery are mainly composed of palm pretreatment system and palm oil pressing machine.

Plam Oil Processing Plant and Machinery

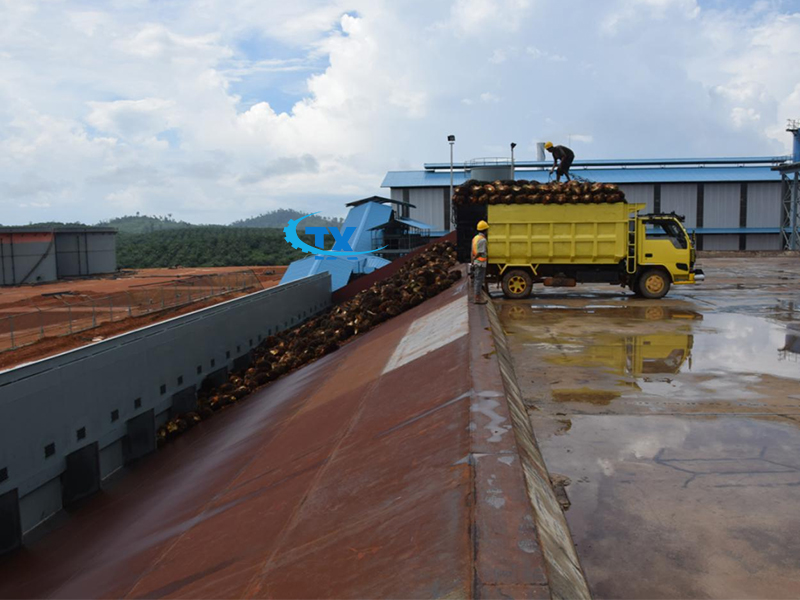

Loading ramp:

As palm fruit unloading, cleaning, storage platforms, all hydraulic segmented unloading.

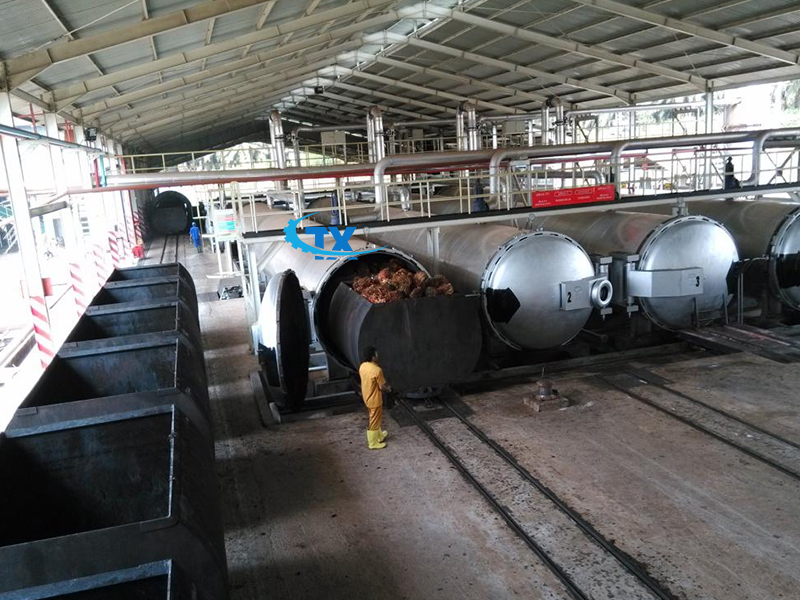

Sterilization:

Cook the fruit bunches with high temperature and sterilization (145 ℃, 90-120minutes), easy to separate fruit from bunches, fruit becoming soft, increasing the humidity of the fruit, it is easy to extract the oil and also make the separation of the core-shell easier, preventing enzymatic decomposition to avoid free fatty acids content rising.

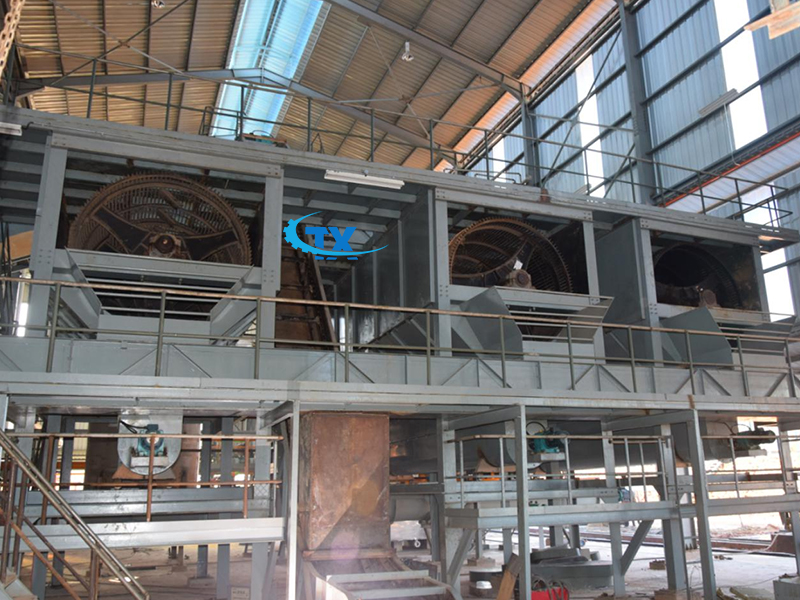

Threshing:

Through strong vibrations, the fruit will be separated from fruit bunches.

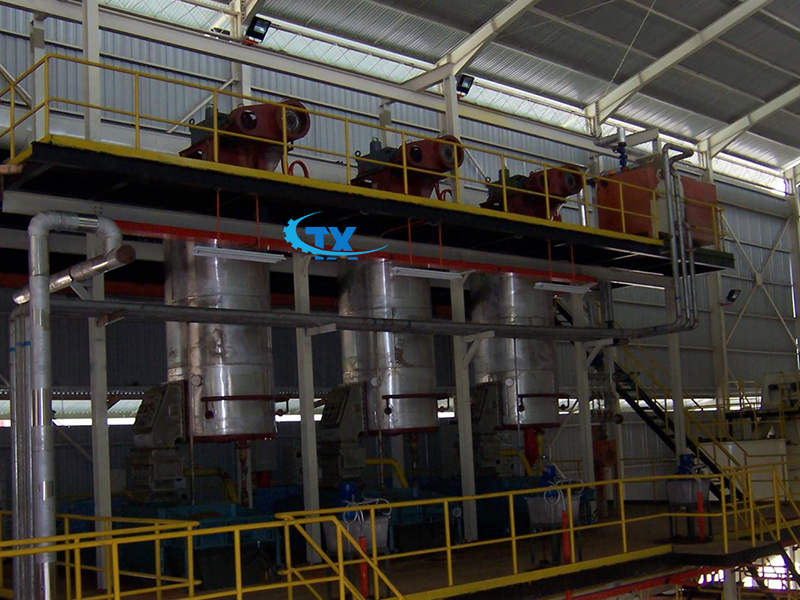

Pressing:

Separate the pulp and nut, get CPO and fiber cake, press machine adopts the double screw hydraulic continuous discharging, greatly improving production efficiency.

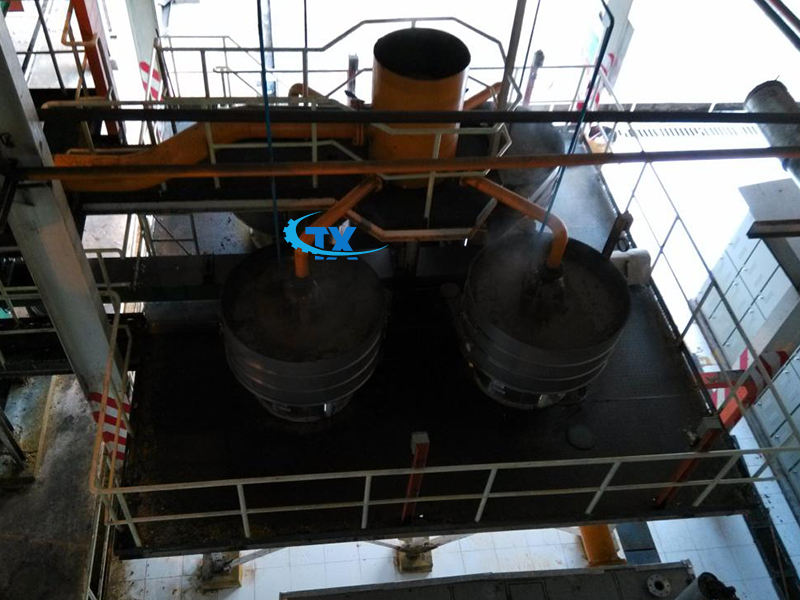

Clarification:

Separate the oil and the sludge (get 90% pure oil),  the oil contains 45% -55% water, sludge and other things.

Purification:

oil purification process - improving pure

Drying:

Extract the water from the oil with continuous vacuum drier, the water can be reduced to 0.1%.

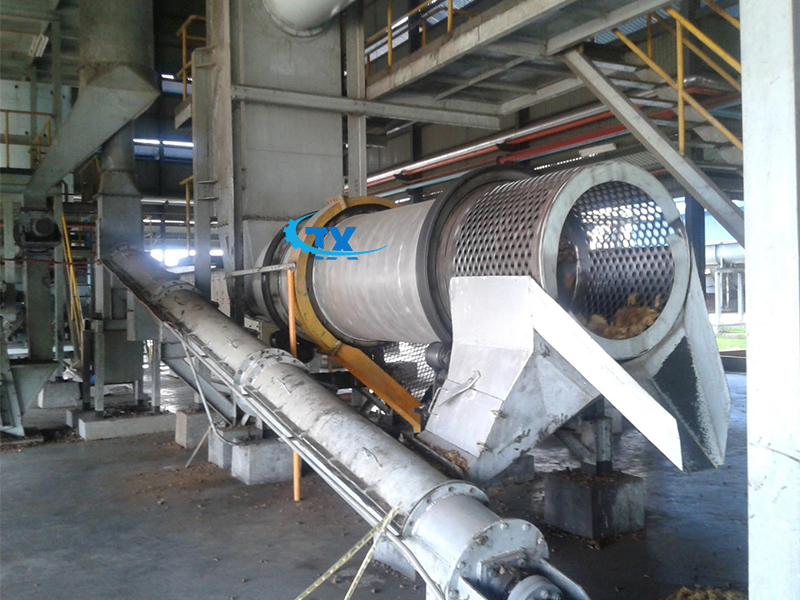

Depericarper (splitter):

Separate the fruit nut and fiber. Blow fiber and other lighter things outside.

Crushing (Crusher):

Crack the nut to get kernel and shell. In hydrocyclone, separate the kernel and core-shell according to their different proportion.

Henan Taixing Machinery Co., Ltd. is a professional Palm Oil Processing plant and machinery Manufacturer in China.

What's our service range:

• Engineering design of the complete palm oil mill, including Factory site plan, mechanical engineering and electrical engineering;

• Supplying complete mechanical & electrical equipment of the plant (FOB Main Port, China);

• Supplying guide for mechanical & electrical installation and commissioning of the mill;
